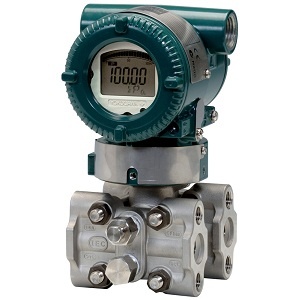

Yokogawa EJX110A-ELH5G-917DJ/KF22/D4/X2/M01/T12/DG6/HC Differential Pressure Transmitter Model: EJX110A-ELH5G-917DJ/KF22/D4/X2/M01/T12/DG6/HC The Yokogawa EJX110A is a high-performance differential pressure transmitter designed for accurate and stable measurement of liquid, gas, and steam flow, level, and pressure in industrial processes. Built with Yokogawa’s proven DPharp sensor technology, it delivers exceptional accuracy, long-term stability, and fast response time. The EJX110A series is widely used in oil & gas, petrochemical, power generation, water treatment, and general process industries where reliability and precision are critical. The ELH5G-917DJ configuration includes enhanced diagnostic capability, digital communication, and robust environmental protection suitable for demanding operating conditions. Technical Specifications for Yokogawa EJX110A-ELH5G-917DJ/KF22/D4/X2/M01/T12/DG6/HC Differential Pressure Transmitter Parameter Specification Model EJX110A-ELH5G-917DJ/KF22/D4/X2/M01/T12/DG6/HC Measurement Type Differential Pressure Accuracy ±0.04% of span (standard) Stability ±0.1% of URL for 10 years Measuring Range Up to 0–500 kPa (depending on capsule code) Output Signal 4–20 mA DC with digital communication (HART) Power Supply 10.5 to 42 V DC Response Time 90 ms (nominal) Wetted Parts Material Stainless Steel (316L typical) Process Connection 1/4–18 NPT (typical for JMS4G) Ambient Temperature Range -40°C to 85°C (depending on option codes) Protection Rating IP66/IP67 Explosion Protection Intrinsically safe / Flameproof (depending on option) Mounting 2-inch pipe mounting or direct mounting Diagnostics Self-diagnostic with sensor and electronics monitoring Applications for Yokogawa EJX110A-ELH5G-917DJ/KF22/D4/X2/M01/T12/DG6/HC Differential Pressure Transmitter The EJX110A differential pressure transmitter is suitable for: Flow measurement using orifice plates, venturi tubes, and flow nozzles Level measurement in pressurized and atmospheric tanks Filter monitoring and pump protection Steam flow measurement in power plants Gas and liquid pressure drop monitoring Custody transfer and critical control loops Features of Yokogawa EJX110A-ELH5G-917DJ/KF22/D4/X2/M01/T12/DG6/HC Differential Pressure Transmitter High accuracy and long-term stability Advanced DPharp digital sensor technology Fast response time for dynamic process control Built-in self-diagnostics Multi-sensing capability (pressure and static pressure monitoring) Excellent vibration and overpressure resistance Low power consumption Robust housing suitable for harsh environments Digital communication capability (HART protocol) Wide range of explosion-proof and safety certifications
